Defect analysis (inclusions, impurities, pores, cracks)



X-ray tomography


General purpose

Computed tomography (CT) is a non-destructive method for material testing with aim to reveal the inner structure of the materials without their destroying.

Principle of operation

Non-destructive testing of materials using 3D tomography is composed of two steps - scanning and volume reconstruction. During scanning, radiation source, sample and detector are arranged in one plane/line. The sample is fixed in a holder, which is scanned during step-wise rotation about the axis of rotation at a small selected angle (e.g. 12´). The x-ray beam penetrates into the sample and interacts with it. The interacted signal is detected on the digital detector, which converts the x-ray intensity into a digital projection image.

3D Principle schema AA3D CT principle

Usually, the object is rotated totally at 360° which allows 3-D reconstruction of the studied material. X-ray intensity depends on the sample thickness, the density and atomic number of the material. The resulting object is displayed in different grey values, which correspond to the different density of the material; high density leads to bright and low density to dark display.

Application of the technique

Computed tomography can be successfully used to study inner structure of materials in many fields of application, i.e. automotive industry, healthcare, geology, etc. The method allows studying wide range of materials for example: metals, plastics, wood, ceramics, minerals, bones, fossils.

Possibility of CT:

Typical case studies

3D analysis and material composition
Aluminium foam
al_foam-3D3D view

al_foam-xx view

al_foam-yy view

al_foam-zz view

Cloth
Cloth-3D3D view

Cloth-xx view

Cloth-yy view

Cloth-zz view

Segmentation of aluminium foam infiltrated by PCM

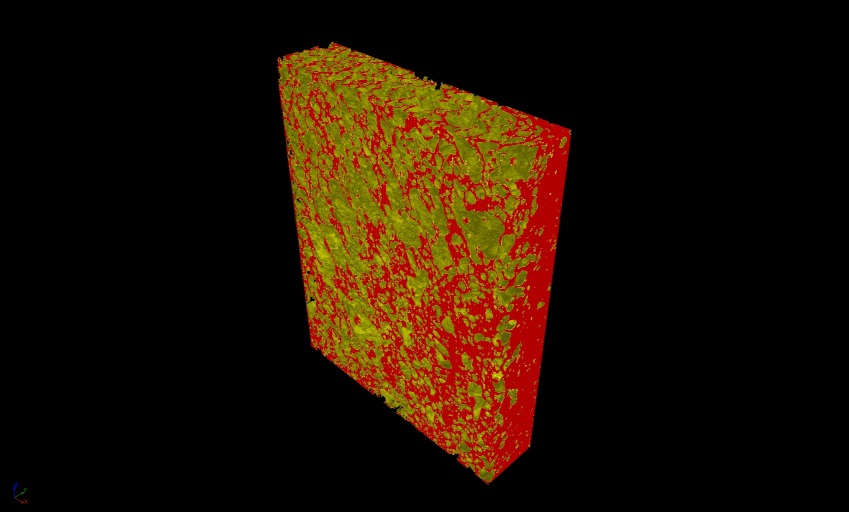

PCM-3D3D view

PCM-xx view

PCM-yy view

PCM-zz view

Structure and defect analysis
Defects in the weld
Weld-3D3D view

Weld-xx view

Weld-yy view

Weld-zz view

Deformation on the outer side of pipe
Pipe-3D3D view

Pipe-xx view

Pipe-yy view

Pipe-zz view

Crack in sprocket
Crack in sprocket

Determination of density and porosity
Porosity measurement
Porosity-3D3D view

Porosity-xx view

Porosity-yy view

Porosity-zz view
